Key Features
♦ Power System Metering
♦ Analog Transducer Output
♦ True-RMS Measuring
♦ Remote Switch Controlling
♦ Local/Remote Data Accessing
♦ Hidden Key Design
♦ Analog Transducer Output
♦ True-RMS Measuring
♦ Remote Switch Controlling
♦ Local/Remote Data Accessing
♦ Hidden Key Design
Application
♦ Metering of distribution feeders
♦ Medium and low voltage systems
♦ Medium and low voltage systems
♦ Commercial, industrial, utility
♦ Industrial apparatus
♦ Semiconductor/Microelectronics

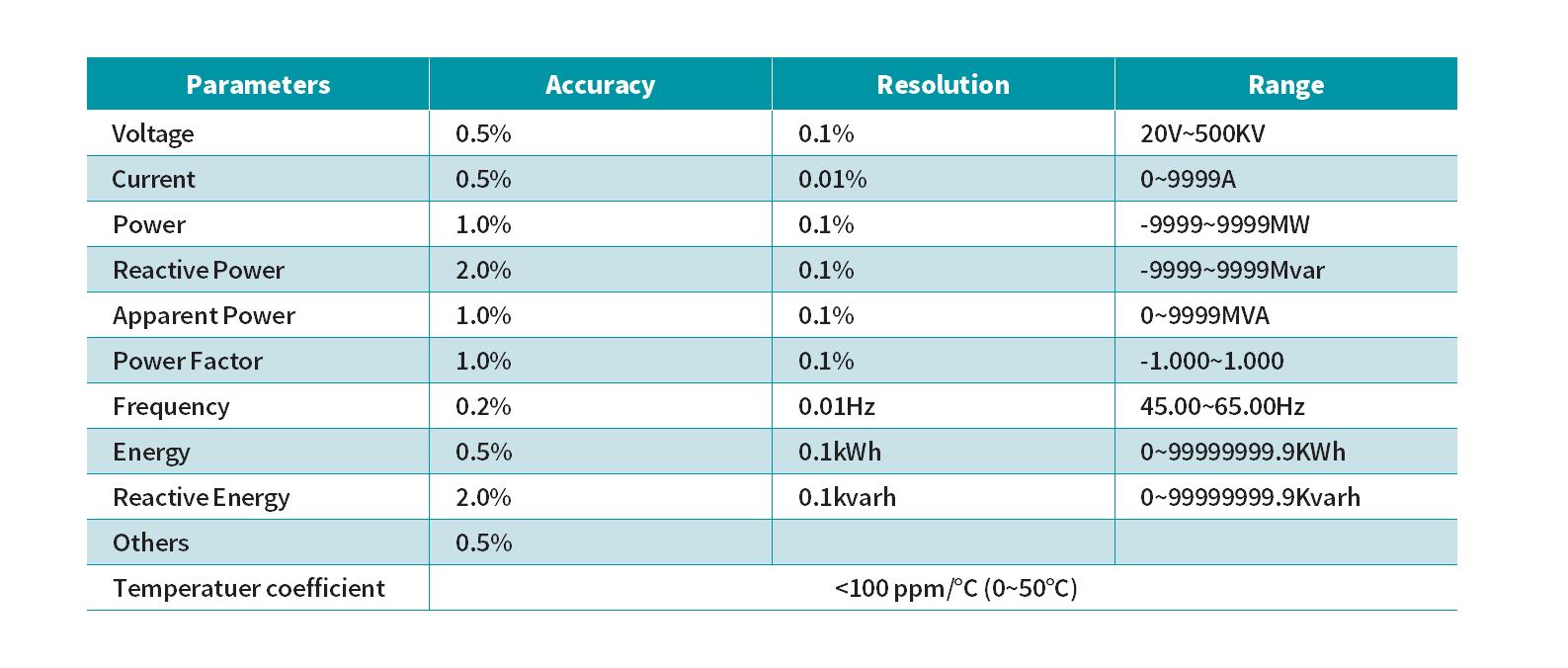

Accuracy
Features

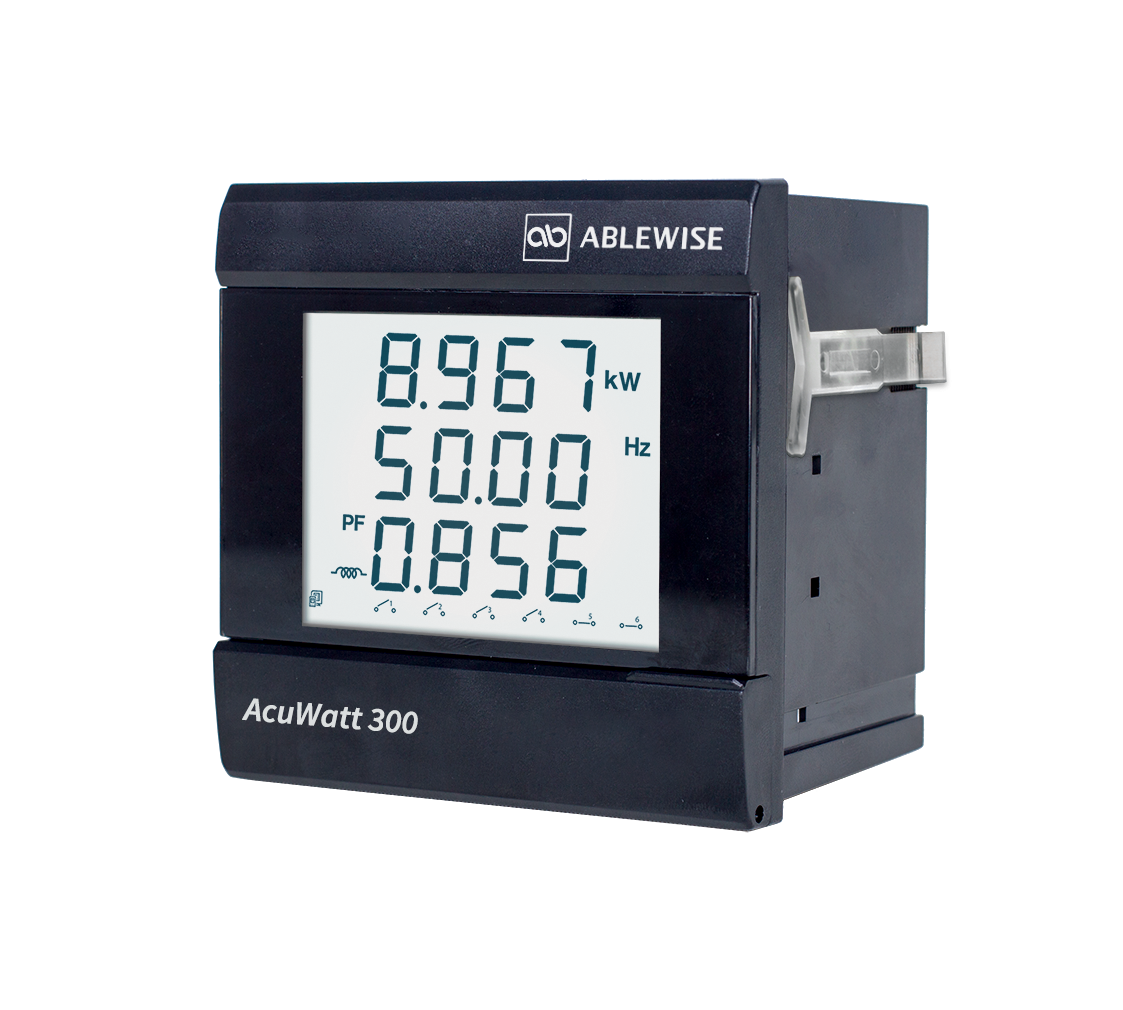

The 2 Relay outputs are for Electric Switch controlling while Switch status monitoring is possible by using the 6 switch (DI) inputs. Two Analog Outputs can be used in DCS systems or industrial apparatus. The AcuWatt 300 series combines high accuracy measurement with intelligent multifunction capabilities with a simple HMI interface.
The AcuWatt 300 may be used as a data acquiring device for an Intelligent Power Distribution Automation System or a Plant Automation System that integrates process, instrument and electrical requirements. All monitored values are available via RS485 communication ports running the Modbus™ protocol. The AcuWatt 300 series meter is suitable for AC applications where there is considerable distortion of current waveforms from nonlinear loads such as a VVVF Inverter, Ballastor and Switching Power Supply.
The AcuWatt 300 may be used as a data acquiring device for an Intelligent Power Distribution Automation System or a Plant Automation System that integrates process, instrument and electrical requirements. All monitored values are available via RS485 communication ports running the Modbus™ protocol. The AcuWatt 300 series meter is suitable for AC applications where there is considerable distortion of current waveforms from nonlinear loads such as a VVVF Inverter, Ballastor and Switching Power Supply.
